Sagitta OAG Motorized Off-Axis Guider

Description

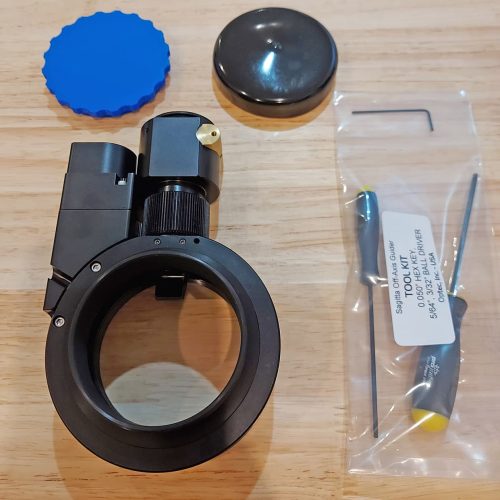

Sagitta OAG Motorized Off-Axis Guider

Featuring a full 3-inch (76.2mm) clear aperture, Sagitta includes a high-quality fully multi-coated pick-off prism with 12.5mm clear aperture to the guide camera.

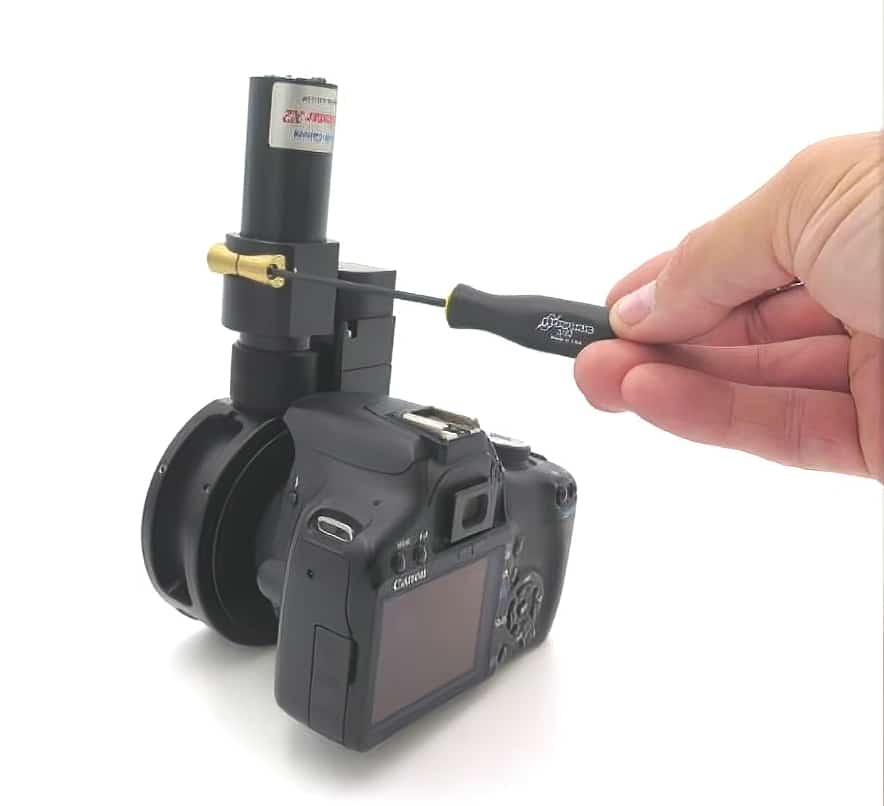

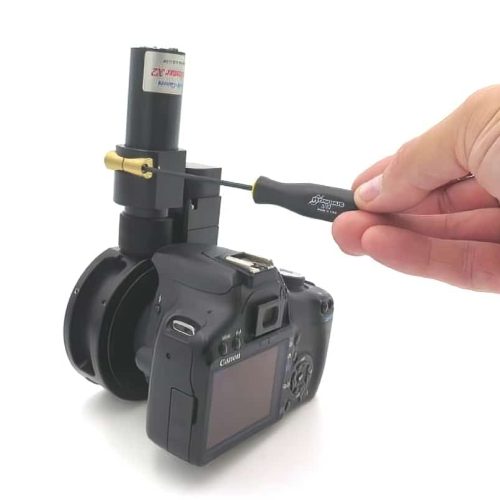

Sagitta features a large brass split-clamp for attachment of any 1-1/4” format guide camera with plenty of range for setting the guide camera parfocal to the imaging camera.

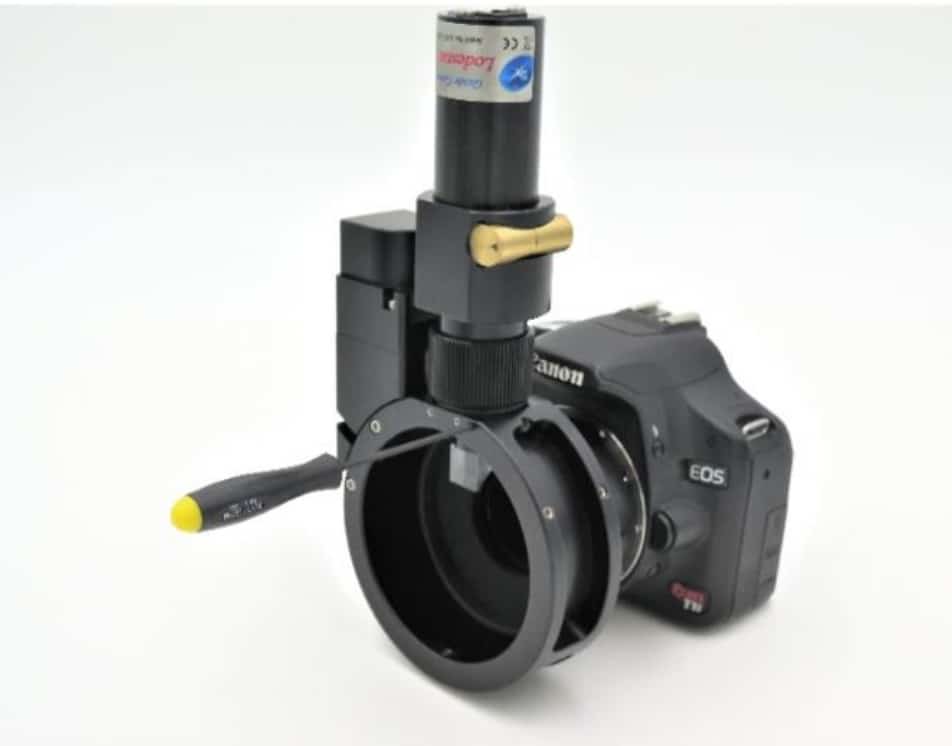

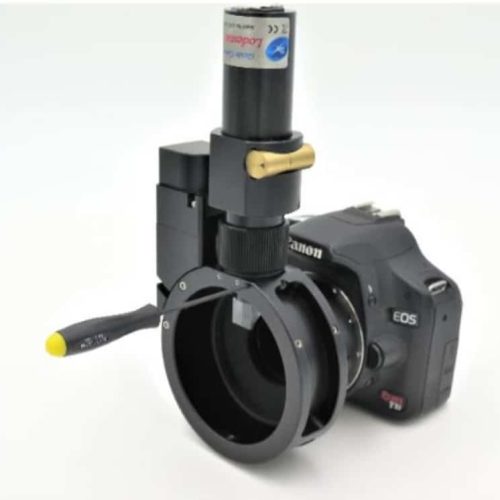

Adjusting the prism stalk height can be accomplished with a single tool and provides prism engagement adjustment of 12mm.

Overall, guide camera adjustments exceed 42mm while the OAG body thickness is held at only 31.75mm or 1-1/4”.

• 3-inch (76.2mm) clear aperture to main camera
• 12.5mm clear aperture to the guide camera
• large brass split-clamp for any 1-1/4” format guide camera
• Manual focuser to parfocalize main and guide camera
• OAG body thickness is held at only 31.75mm or 1-1/4”
• OPTEC-3000-S dovetails

Note: Required the Optec  – FocusLynx Dual-Focus Controller – Click here
